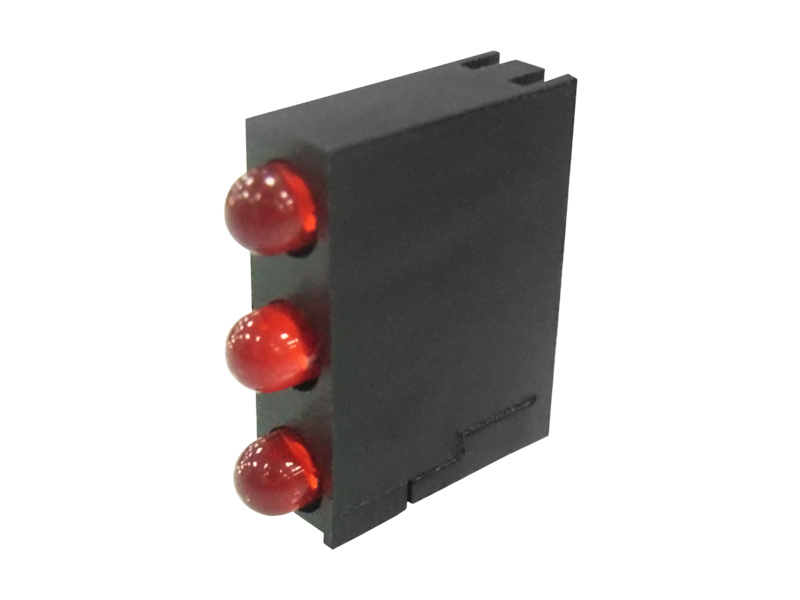

KLH-330

Right Angled 3 stack LED holder for LED size 3mm(T-1). Centerline bottom LED 2.5mm. Distance between LED's 5.08mm. LED's shown for Demo not included in holder

KLH-331

Right Angled 3 stack LED holder for LED size 3mm(T-1). Centerline bottom LED 2.5mm. Distance between LED's 5.08mm. LED's shown for Demo not included in holder

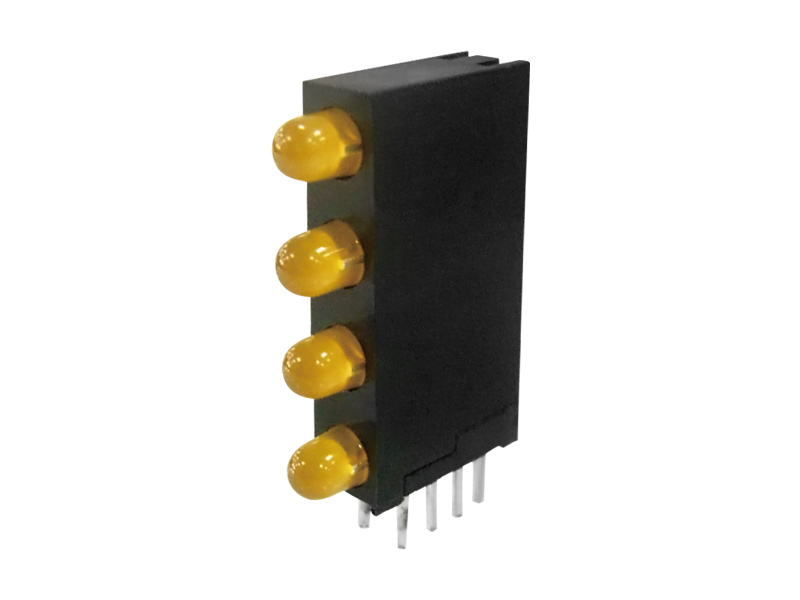

KLH-340

Right Angled 4 stack LED holder for LED size 3mm(T-1). Centerline bottom LED 2.54mm. Distance between LED's 5.08mm. LED's shown for Demo not included in holder

KLH-341

Right Angled 4 stack LED holder for LED size 3mm(T-1). Centerline bottom LED 2.54mm. Distance between LED's 5.08mm. LED's shown for Demo not included in holder

KLH-342

Right Angled 4 stack LED holder for LED size 3mm(T-1). Centerline bottom LED 2.54mm. Distance between LED's 3.81mm. LED's shown for Demo not included in holder

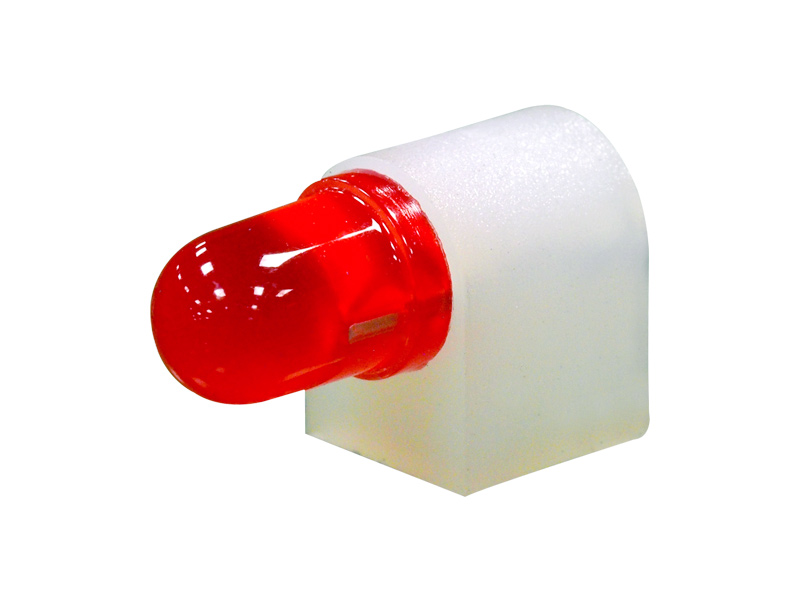

LEAH-4.5

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). Centerline 4.5mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

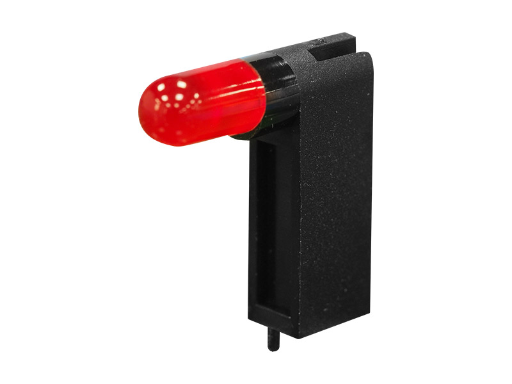

LEAK-17.5

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 17.5mm. The 2 Centerpins avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

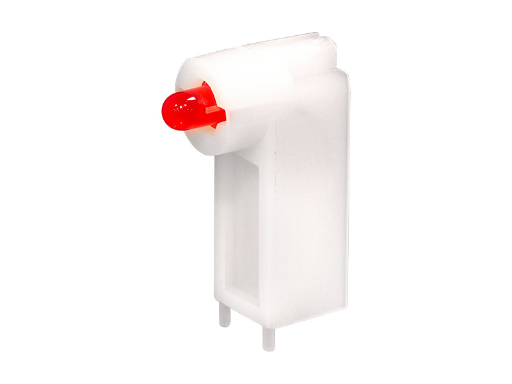

LEAK3-17.5

LED Support PA66 Right Angle PCB Mount for for 3 lead LED size 3mm(T-1) with 2 Centerpins. Centerline 17.5mm. The 2 Centerpins avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

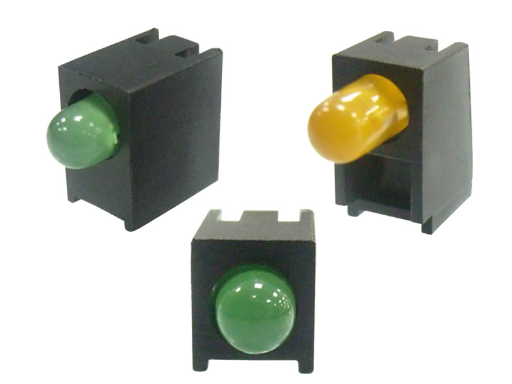

LED-301

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1). Centerline 5mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

LED-301(B)

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1). Centerline 5mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

LED-301A

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1). Centerline 5mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

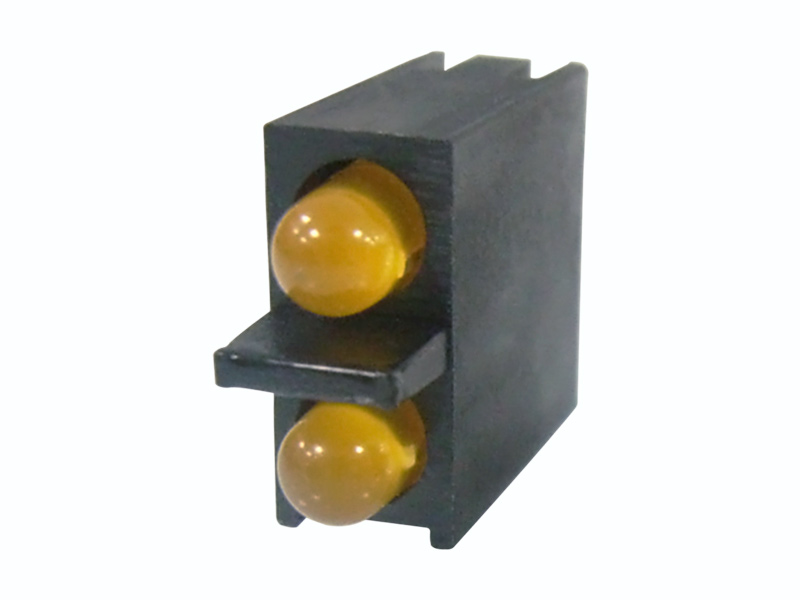

LED-305

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED. Centerline bottom LED 2.54mm. Centerline top LED 7.62mm. LED's shown for Demo not included in holder

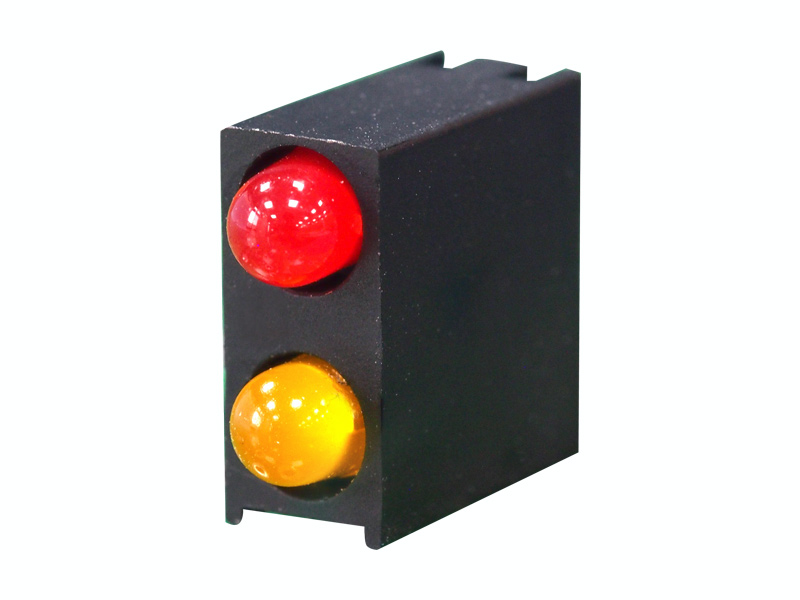

LED-306

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED. Centerline bottom LED 2.7mm. Centerline top LED 7.7mm. LED's shown for Demo not included in holder

LED-306(A)

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED. Centerline bottom LED 2.7mm. Centerline top LED 7.7mm. LED's shown for Demo not included in holder

LED-306(B)

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED. Centerline bottom LED 2.65mm. Centerline top LED 7.65mm. LED's shown for Demo not included in holder

LED-307

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED. Centerline bottom LED 2.65mm. Centerline top LED 7.65mm. LED's shown for Demo not included in holder

LED-307(A)

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED. Centerline bottom LED 2.65mm. Centerline top LED 7.65mm. LED's shown for Demo not included in holder

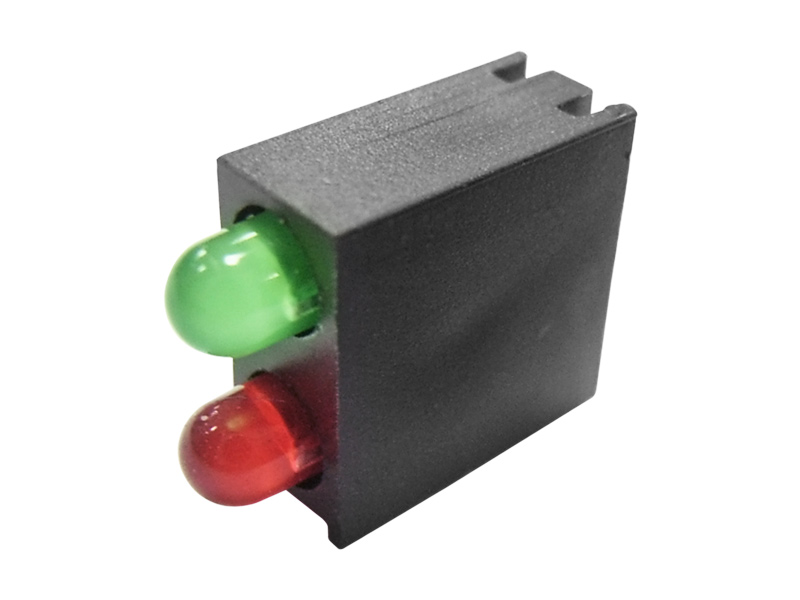

LED-308

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED. Centerline bottom LED 2.7mm. Centerline top LED 7.7mm. LED's shown for Demo not included in holder

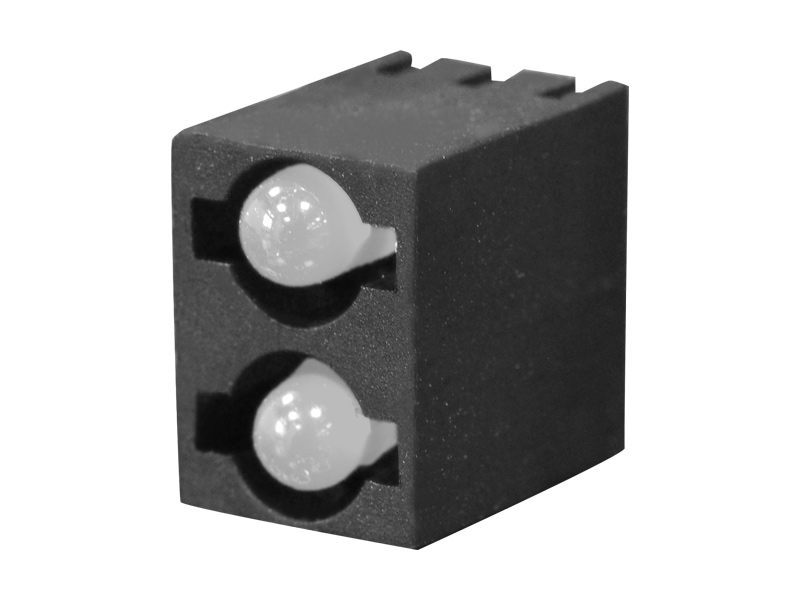

LED-310

Right Angled vertical 2 stack LED holder for 3 lead T-1 (3mm) LED. Centerline bottom LED 2.4mm. Centerline top LED 7.4mm. LED's shown for Demo not included in holder

LED-312

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1). Centerline 6.4mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

LED-313

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1). Centerline 2.5mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

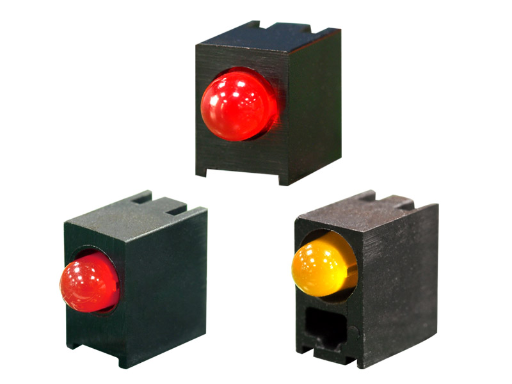

LED-314

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1). Centerline 3.2mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

LED-316

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1). Centerline 3.5mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

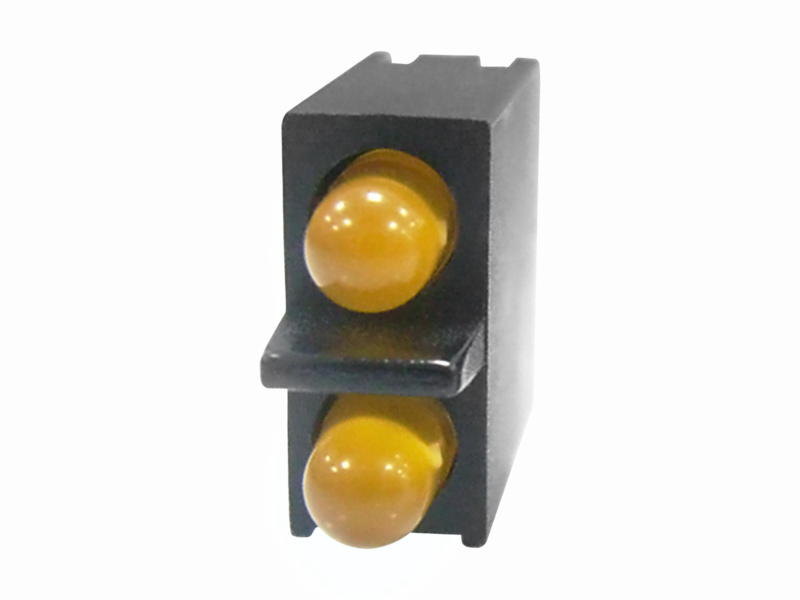

LED-317

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED. Centerline bottom LED 2.4mm. Centerline top LED 7.48mm. LED's shown for Demo not included in holder

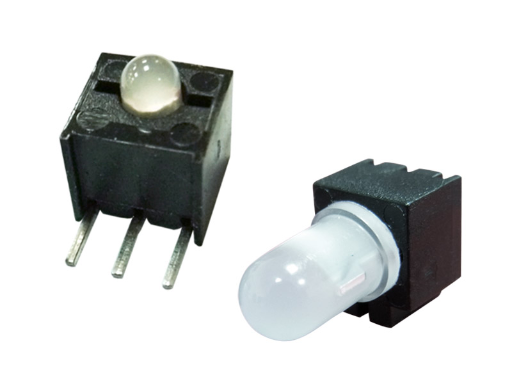

LED-319

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 3mm(T-1). Centerline 5.0mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

LED-322

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED. Centerline bottom LED 2.3mm. Centerline top LED 7.3mm. LED's shown for Demo not included in holder

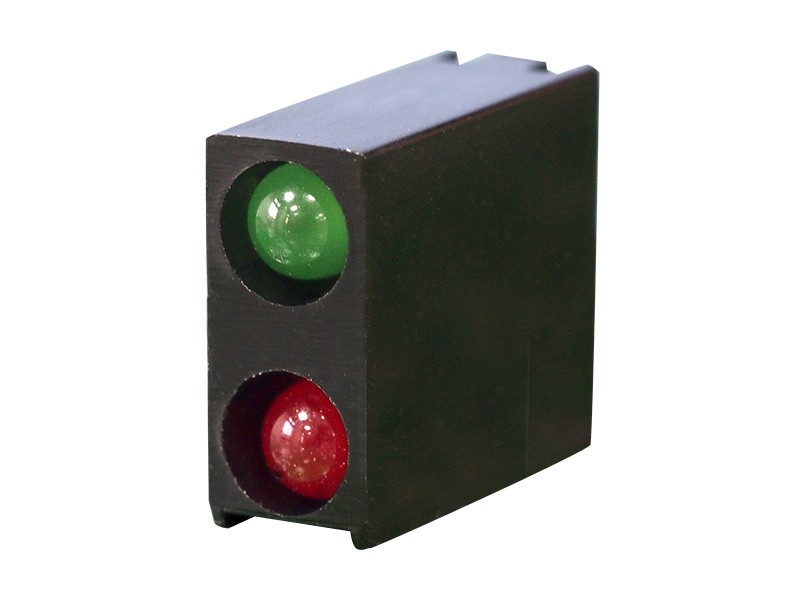

LED-323

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED. Centerline bottom LED 2.45mm. Centerline top LED 7.45mm. LED's shown for Demo not included in holder

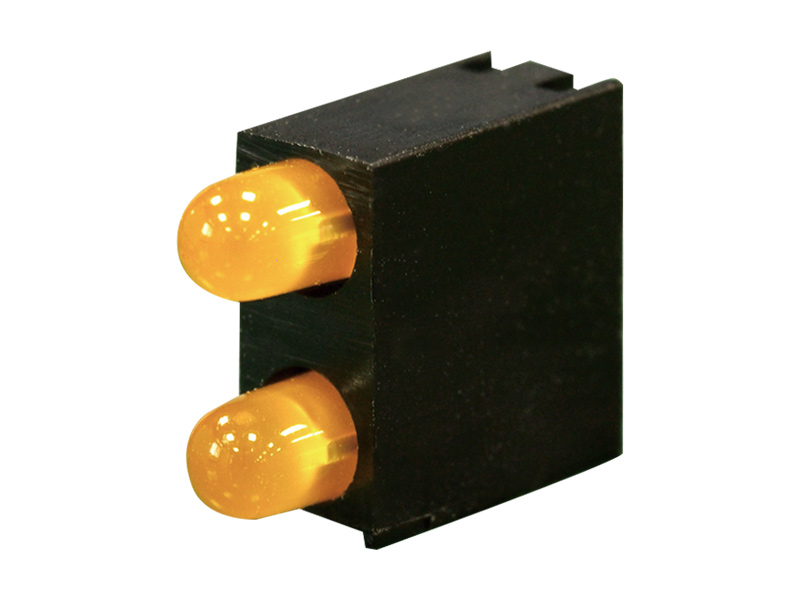

LED-324

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED. Centerline bottom LED 2.7mm. Centerline top LED 7.7mm. LED's shown for Demo not included in holder

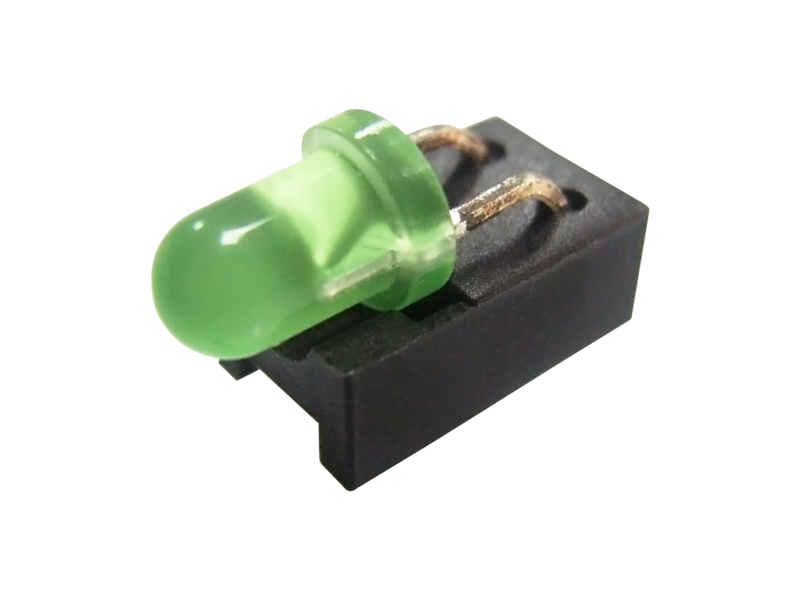

LED-325

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1). Centerline 3.4mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

LED-326

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1). Centerline 4.5mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

LED-328

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1). Centerline 5.1mm. Gives consistent height and support to LED. LED's shown for Demo, not included in holder

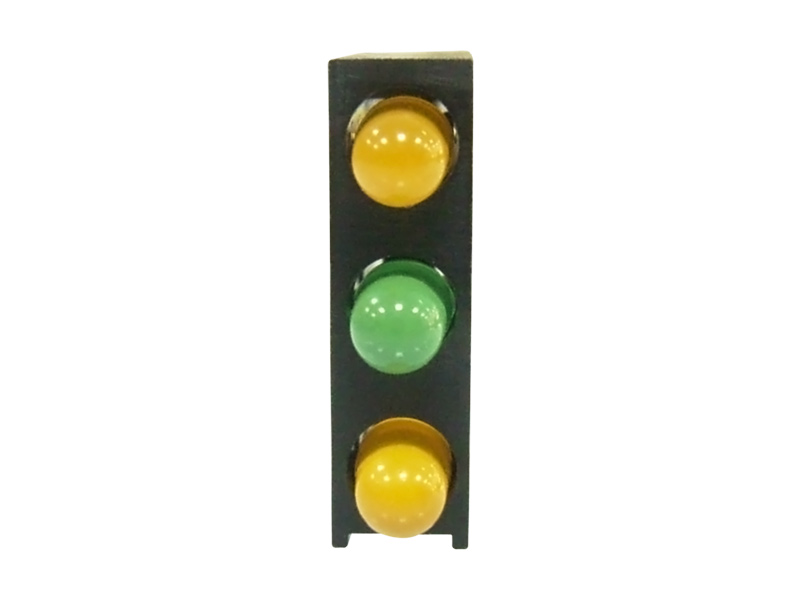

LED-330

Right Angled 3 stack LED holder for LED size 3mm(T-1). Centerline bottom LED 2.5mm. Distance between LED's 5.08mm. LED's shown for Demo not included in holder

LED-331

Right Angled 3 stack LED holder for LED size 3mm(T-1). Centerline bottom LED 2.7mm. Distance between LED's 6.0mm. LED's shown for Demo not included in holder

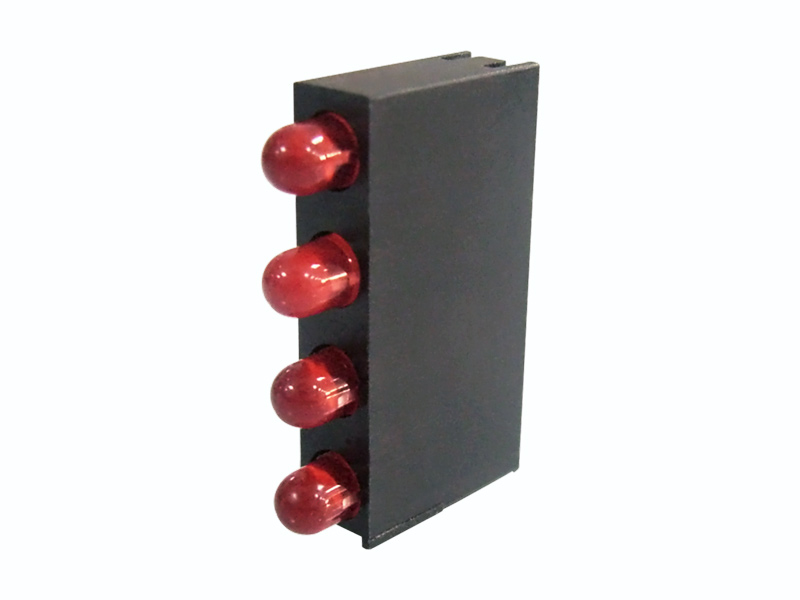

LED-340

Right Angled 4 stack LED holder for LED size 3mm(T-1). Centerline bottom LED 2.54mm. Distance between LED's 5.08mm. LED's shown for Demo not included in holder

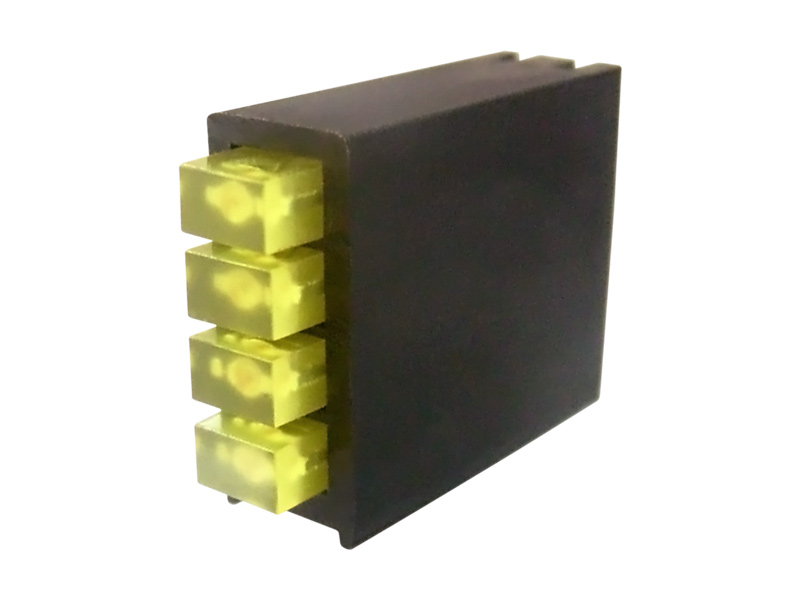

LED-341

Right Angled 4 stack LED holder for Rectangular LED size 5x2mm. Centerline bottom LED 2.7mm. Distance between LED's 2.5mm. LED's shown for Demo not included in holder

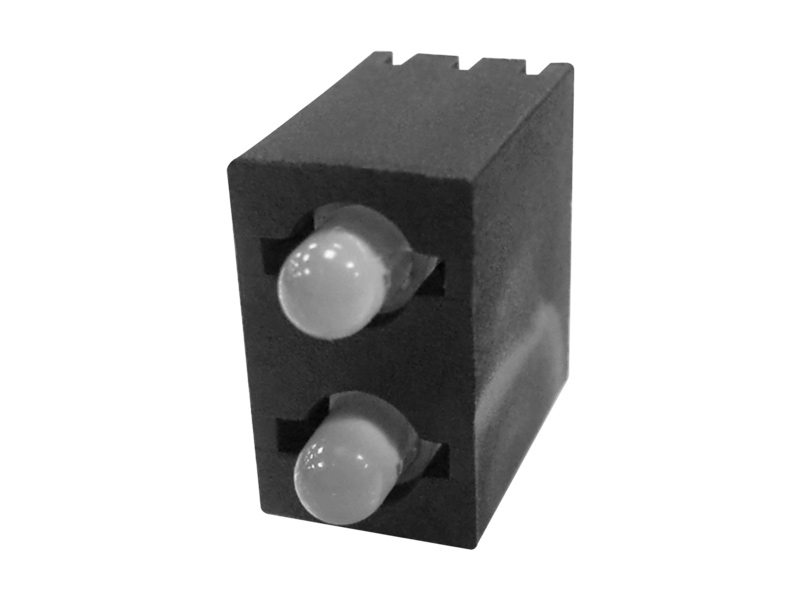

LED-342

Right Angled vertical 2 stack LED holder for 3 lead T-1 (3mm) LED. Centerline bottom LED 3.18mm. Centerline top LED 9.58mm. LED's shown for Demo not included in holder

LED-343

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1). Centerline 4.0mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

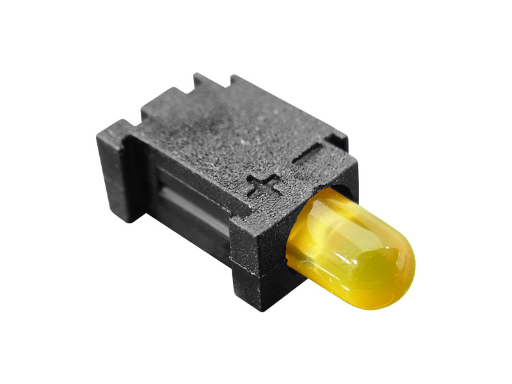

LED-344

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1) with Interlocking feature. Centerline 2.96mm. The Interlocking feature creates a LED holder array . LED's shown for Demo not included in holder

LED-345

Right Angled 4 stack LED holder for LED size 3mm(T-1). Centerline bottom LED 3.7mm. Distance between LED's 5.0mm. LED's shown for Demo, not included in holder

LED-501

LED Support PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾). Centerline 3.8mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

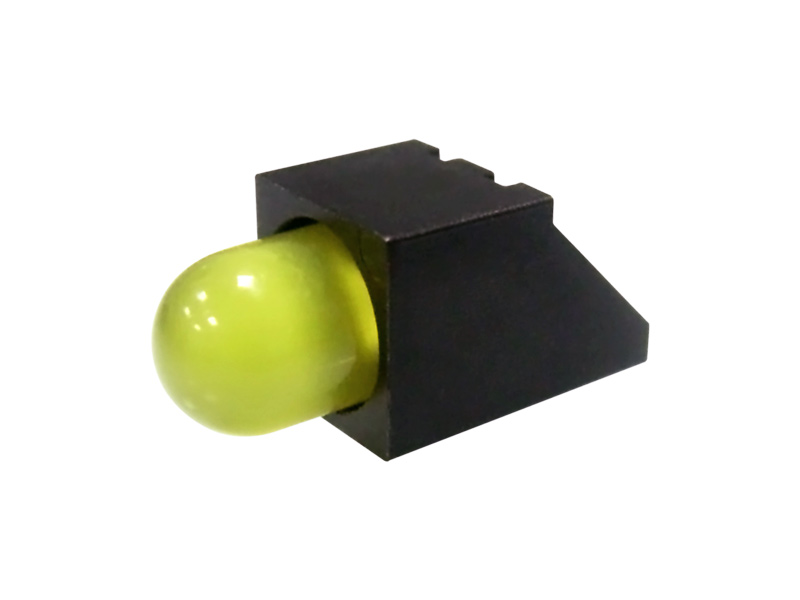

LED-502

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). Centerline 3.0mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

LED-502S

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). Centerline 3.0mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

LED-503

LED Support PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾). Centerline 3.6mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

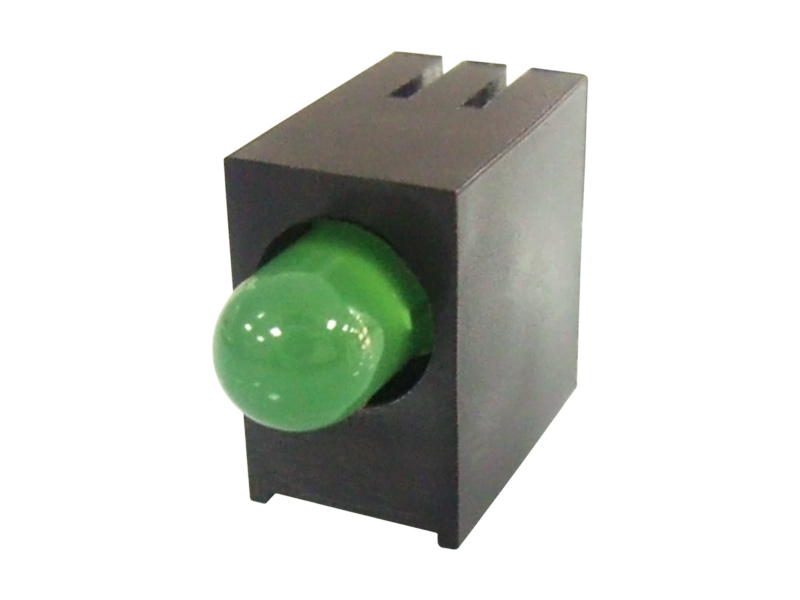

LED-504

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). Centerline 7.5mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

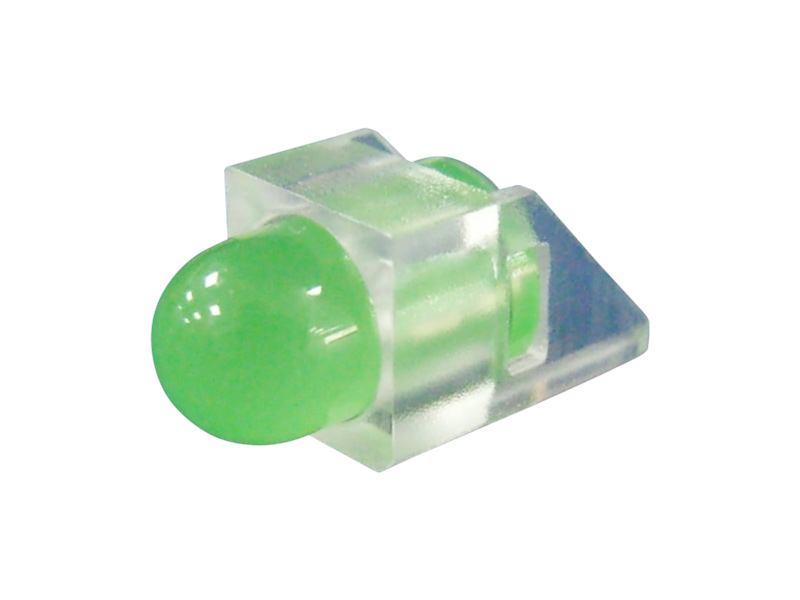

LED-505

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). Centerline 6.05mm. LED's shown for Demo not included in holder

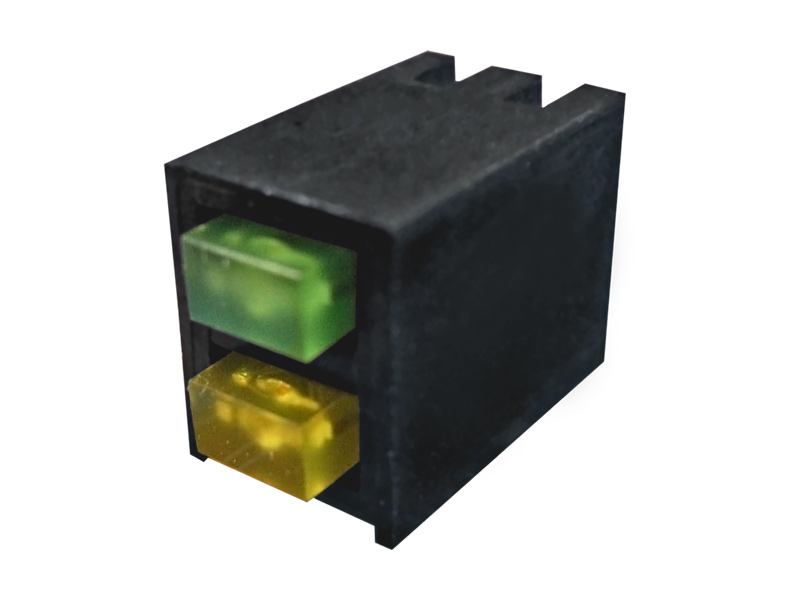

LED-521

Right Angled vertical 2 stack LED holder for Rectangular LED 3x2mm. Distance between LED's 3.5mm. LED's shown for Demo not included in holder

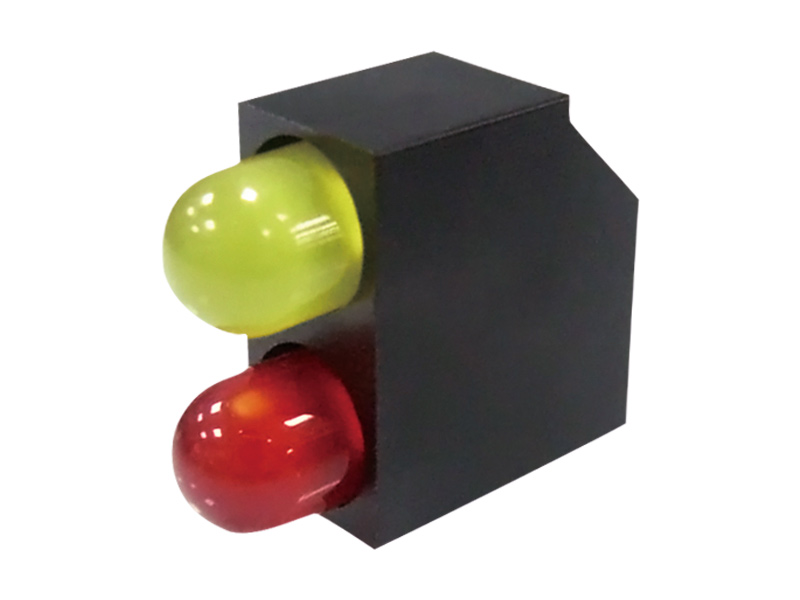

LED-525

Right Angled vertical 2 stack LED holder for size 5mm(T-1¾) LED. Centerline bottom LED 3.0mm. Centerline top LED 9.4mm. LED's shown for Demo not included in holder

LED-528

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). Centerline 9.6mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

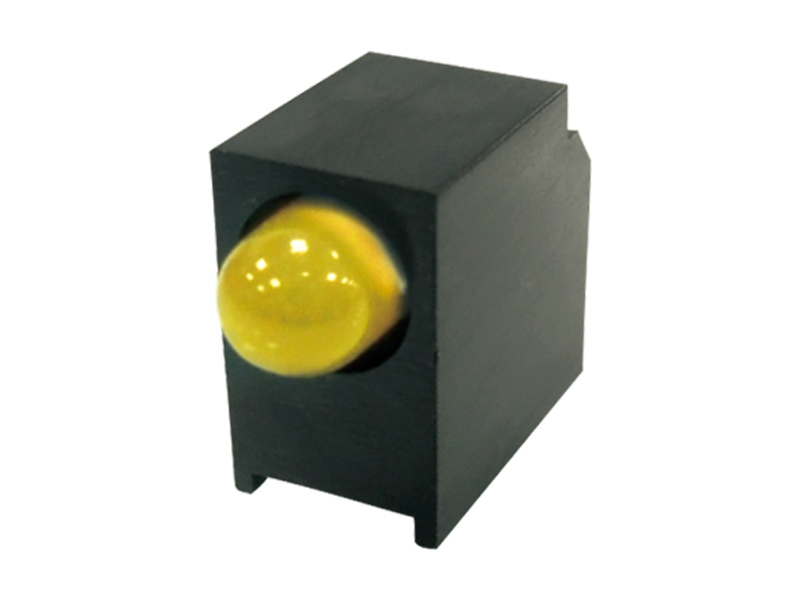

LED-535

LED Support PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾). Centerline 8.8mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

LED-542

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). Centerline 4.1mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

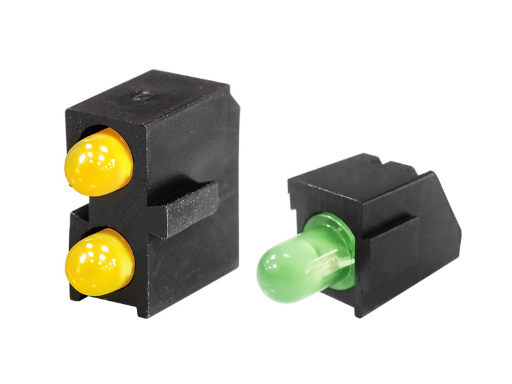

LED-6301

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1) with Interlocking feature. Centerline 3.1mm. The Interlocking feature creates a LED holder array . LED's shown for Demo not included in holder

LED-6302

LED Holder PA66 Right Angle vertical 2 stack PCB Mount for LED size 3mm(T-1) with Interlocking feature. Distance between LED's 5.0mm. The Interlocking feature creates a LED holder array . LED's shown for Demo not included in holder

LED-6303

LED Holder PA66 Right Angle vertical 2 stack PCB Mount for LED size 3mm(T-1) with Interlocking feature. Centerline bottom LED 4.6mm. Centerline Top LED 9.7mm. The Interlocking feature creates a LED holder array . LED's shown for Demo, not included in holder

LED-6501

LED Support PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). with Interlocking feature. Centerline 3.4mm. The Interlocking feature creates a LED holder array . LED's shown for Demo not included in holder

LED1L-10

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with Centerpin. Centerline 10.0mm. The Centerpin keeps the holder in place. and relieves the stress on the leads of the LED. Gives consistent height and support to LED. LED's shown for Demo not included in holder

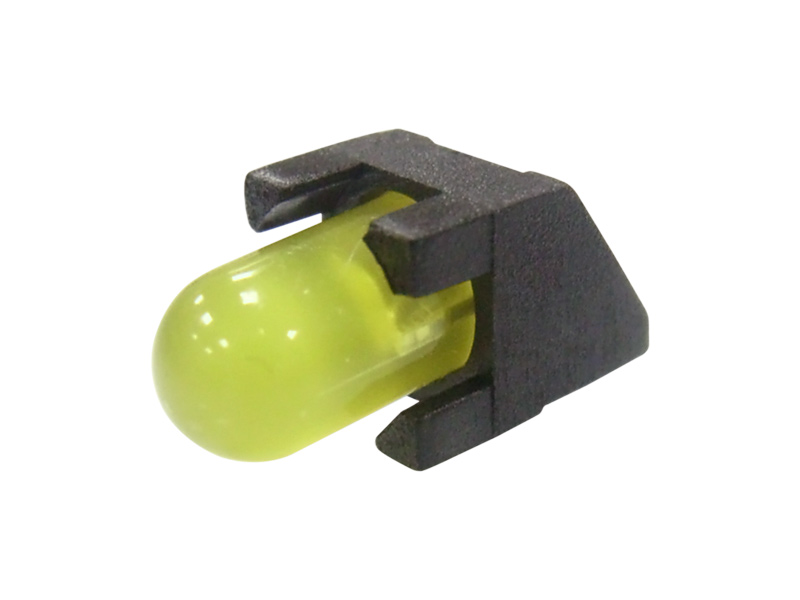

LED1L-2.5

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). Centerline 3.1mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

LED1L-5

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). Centerline 5.0mm. Gives consistent height and support to LED. LED's shown for Demo not included in holder

LED1L-6

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with Centerpin. Centerline 6.0mm. The Centerpin keeps the holder in place. and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LED1L-7

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with Centerpin. Centerline 7.0mm. The Centerpin keeps the holder in place. and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

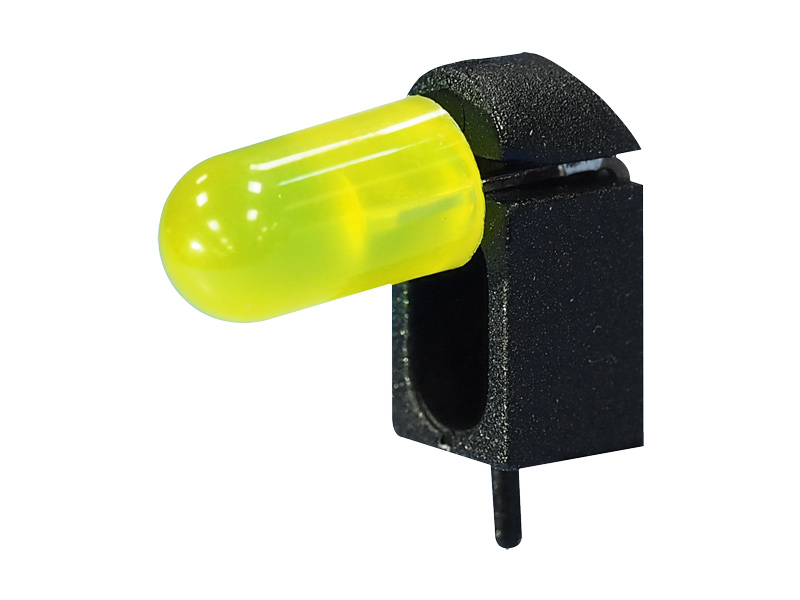

LED1L-8

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with Centerpin. Centerline 8.0mm. The Centerpin keeps the holder in place. and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

LED1L-9

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with Centerpin. Centerline 9.0mm. The Centerpin keeps the holder in place. and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

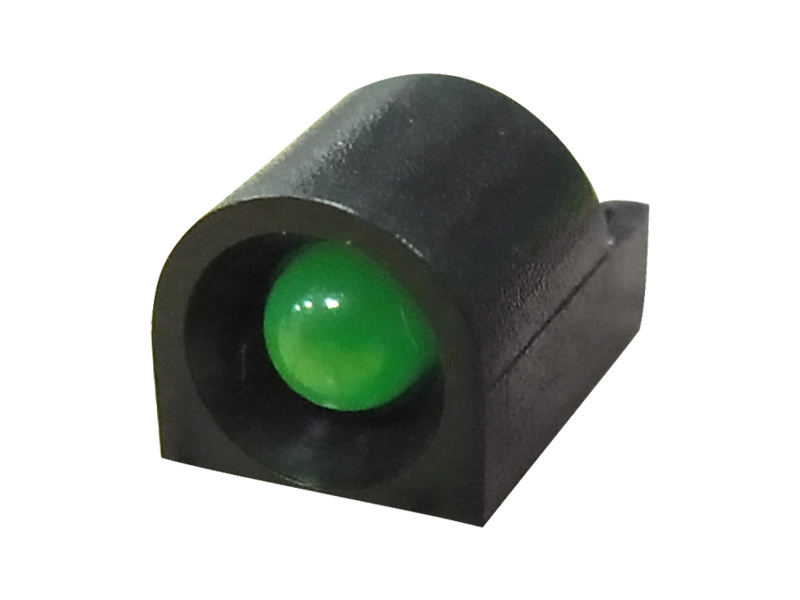

LED3-21

LED Housing ABS Right Angle PCB Mount for LED size 3mm(T-1). Centerline 2.55mm. Gives consistent height and protection to the LED. LED's shown for Demo not included in holder

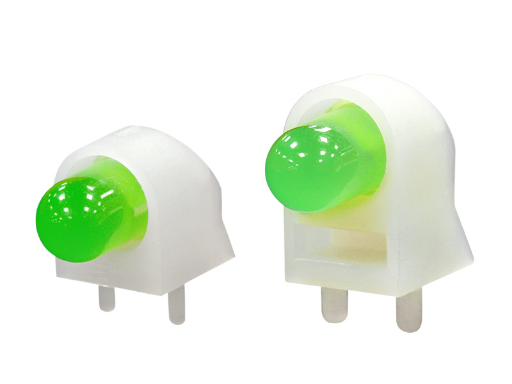

LED5L-10

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾) with Locking & 2 Centerpins. Centerline 10.0mm. The Locking & Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

LED5L-11

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾) with 2 Centerpins. Centerline 11.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

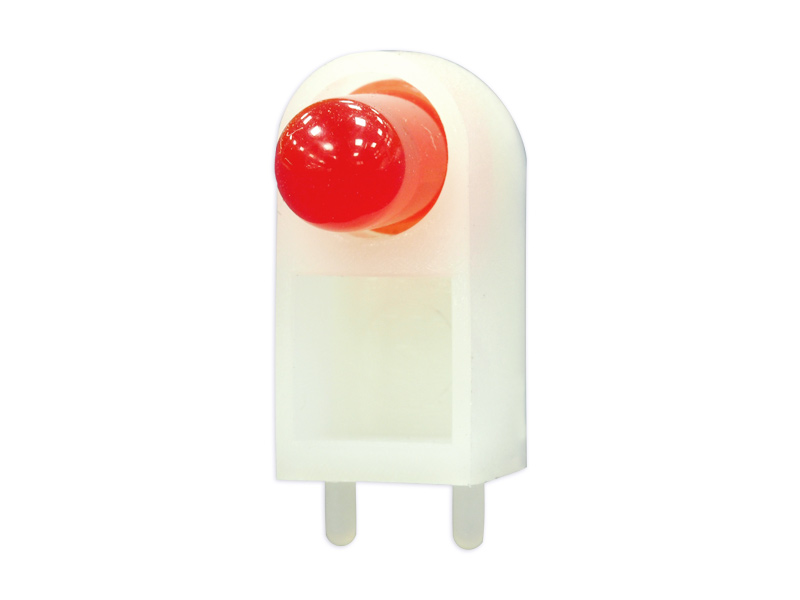

LED5L-12

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾) with 2 Centerpins. Centerline 12.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

LED5L-13

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾) with Locking & 2 Centerpins. Centerline 13.5mm. The Locking & Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

LED5L-14

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾) with 2 Centerpins. Centerline 14.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

LED5L-17

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾) with 2 Centerpins. Centerline 17.5mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

LED5L-18

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾) with 2 Locking & Centerpin. Centerline 18.4mm. The Locking & Centerpin avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

LED5L-5

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾) with 2 Centerpins. Centerline 5.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

LED5L-7

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾) with Locking & 2 Centerpins. Centerline 7.0mm. The Locking & Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

LED5L-8

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾) with 2 Centerpins. Centerline 8.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

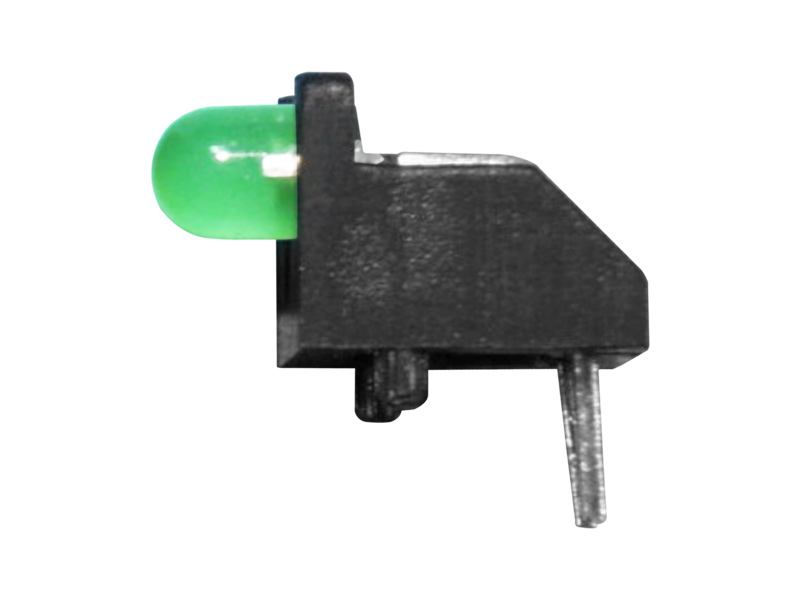

LEJ-13

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 13.0mm. The 2 Centerpins keep the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEJ-4

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 4.0mm. The 2 Centerpins keep the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEJ-4M

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 4.0mm. The Centerpins keep the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo, not included in holder

LEJ-4S

LEJ-5

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 5.0mm. The 2 Centerpins keep the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEJ-6

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 6.0mm. The 2 Centerpins keep the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEJ-7

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 7.0mm. The 2 Centerpins keep the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEJ-8

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 8.0mm. The 2 Centerpins keep the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEJ-9

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 9.0mm. The 2 Centerpins keep the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

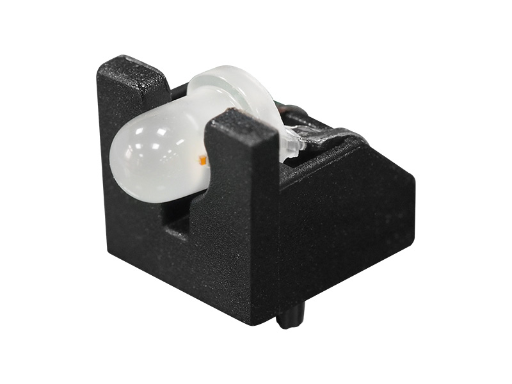

LEJ3-5

LED Support PA66 Right Angle PCB Mount for 3 lead LED size 3mm(T-1) with 2 Centerpins. Centerline 5.0mm. The 2 Centerpins keep the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

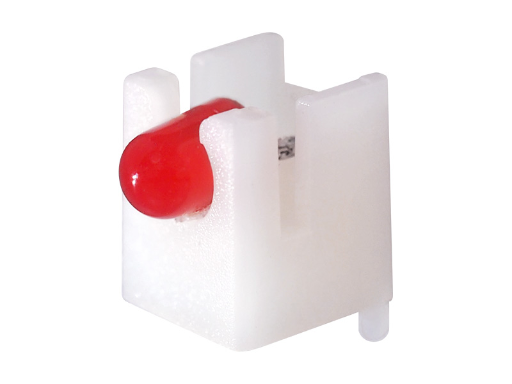

LEJA-5

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 5.1mm. The 2 Centerpins keep the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

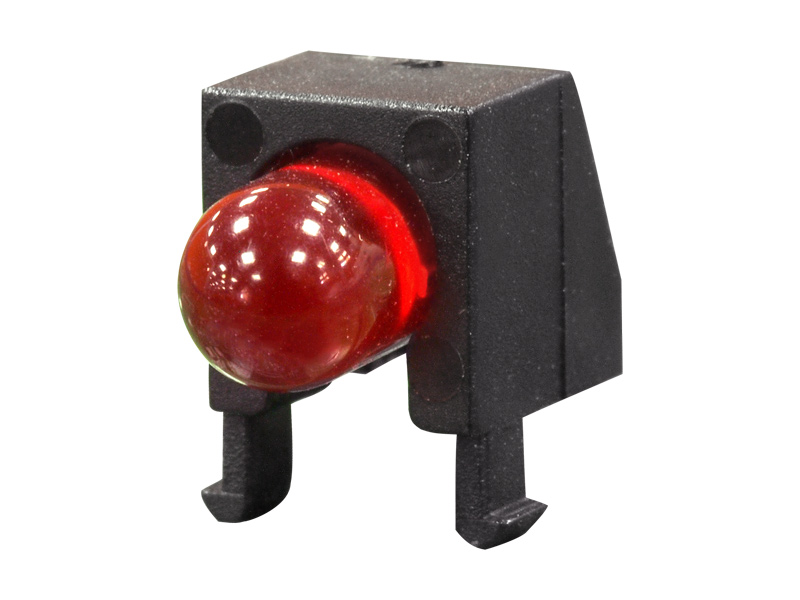

LEJB-4

LED Support PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). with 2 Locking pins. Centerline 4.0mm. The 2 Locking pins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEJN-4

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1). Centerline 4.0mm. LED's shown for Demo not included in holder

LEJT-4

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with Centerpin. Centerline 4.0mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

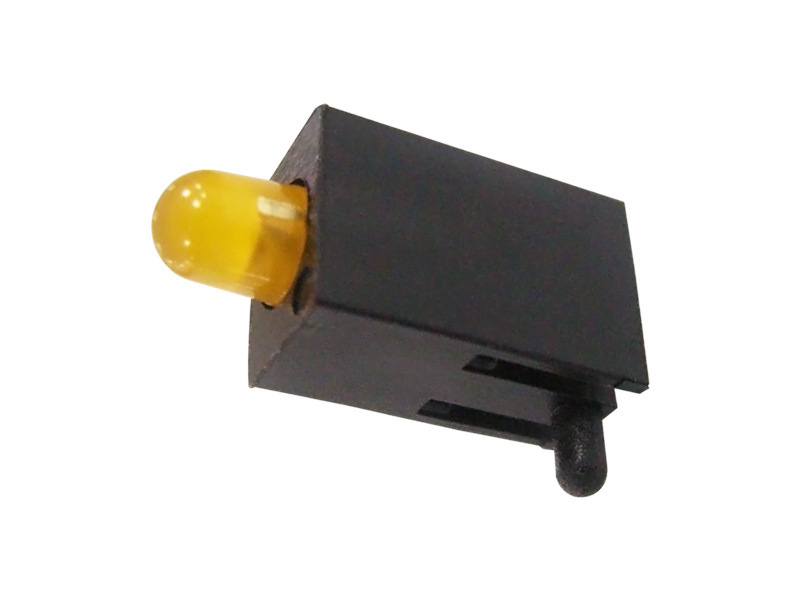

LEK-301

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1) with Centerpin. Centerline 3.0mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

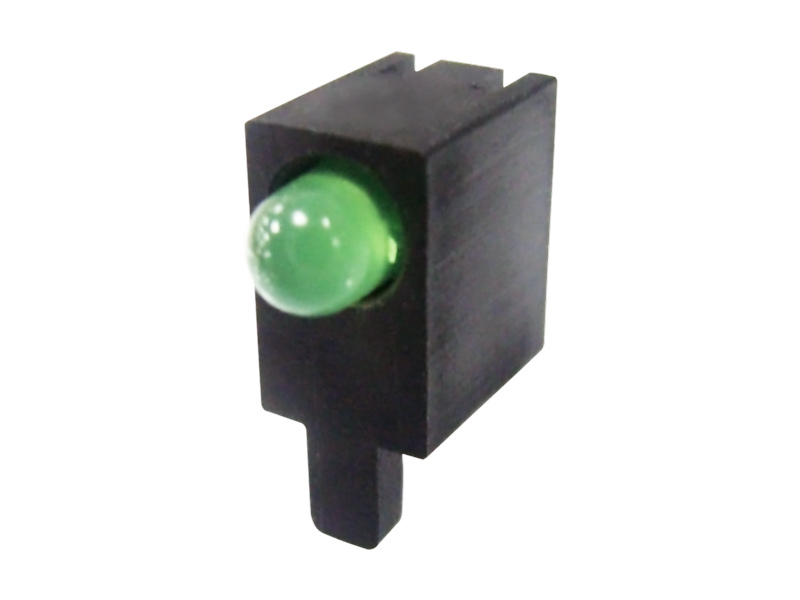

LEK-302

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1) with Centerpin. Centerline 5.0mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

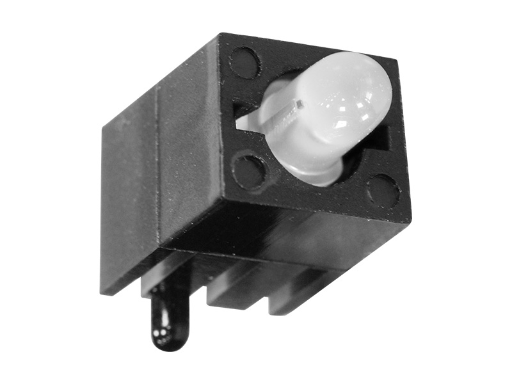

LEK-303

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 3mm(T-1) with Centerpin. Centerline 3.0mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEK-303L

LEK-304

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 6.4mm. The 2 Centerpins avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

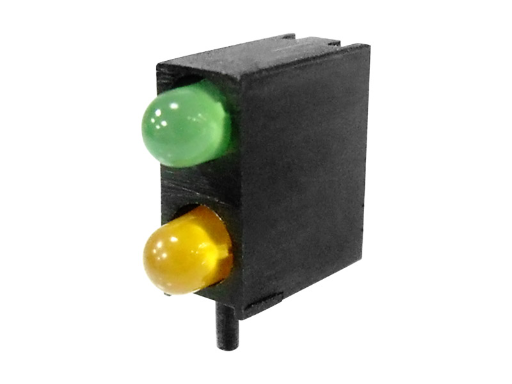

LEK-307

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED with Centerpin. Centerline bottom LED 2.65mm. Centerline top LED 7.65mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

LEK-310

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 6.35mm. The 2 Centerpins avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

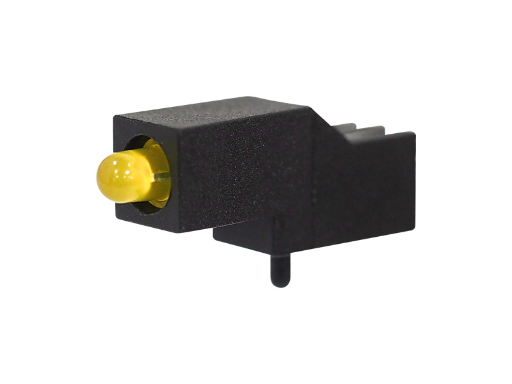

LEK-311

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1) with Centerpin. Centerline 6.0mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

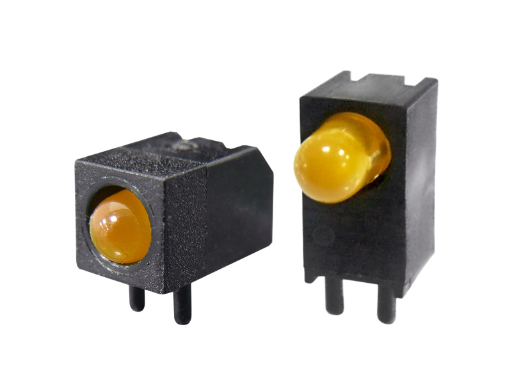

LEK-3111

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 2.5mm. The 2 Centerpins avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

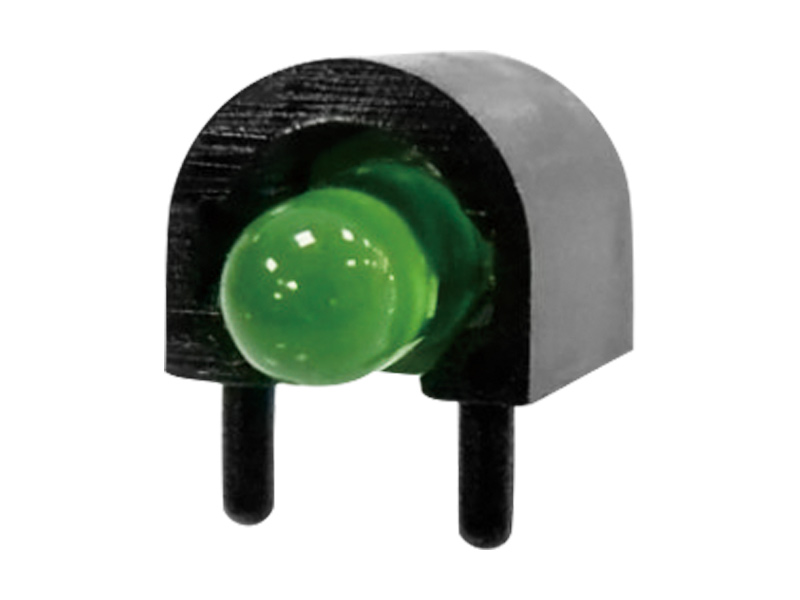

LEK-312

LED Support PA66 Right Angle PCB Mount for 3 lead LED size 3mm(T-1) with 2 Centerpins. Centerline 2.1mm. The 2 Centerpins avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

Product Type

LED Ø (mm)

Number of Leads

Centerline (mm)

Stack Height (mm)

Interlocking Feature

Material

Color

Flammability Class

KLH-330

KLH-331

KLH-340

KLH-341

KLH-342

LEAH-4.5

LEAK-17.5

LEAK3-17.5

LED-301

LED-301(B)

LED-301A

LED-305

LED-306

LED-306(A)

LED-306(B)

LED-307

LED-307(A)

LED-308

LED-310

LED-312

LED-313

LED-314

LED-316

LED-317

LED-319

LED-322

LED-323

LED-324

LED-325

LED-326

LED-328

LED-330

LED-331

LED-340

LED-341

LED-342

LED-343

LED-344

LED-345

LED-501

LED-502

LED-502S

LED-503

LED-504

LED-505

LED-521

LED-525

LED-528

LED-535

LED-542

LED-6301

LED-6302

LED-6303

LED-6501

LED1L-10

LED1L-2.5

LED1L-5

LED1L-6

LED1L-7

LED1L-8

LED1L-9

LED3-21

LED5L-10

LED5L-11

LED5L-12

LED5L-13

LED5L-14

LED5L-17

LED5L-18

LED5L-5
