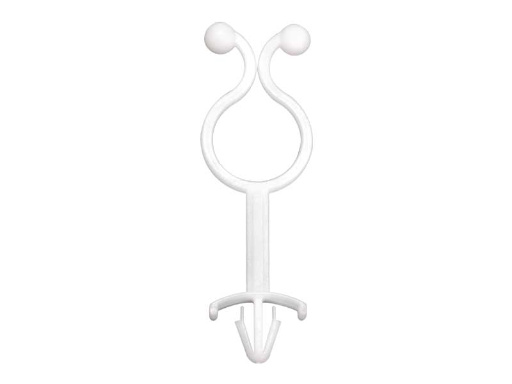

Push Mount 15.8mm Stand-off Twist Lock. Max. Bundle dia. Ø9.7mm. Mounting hole dia. Ø4.8-5.0mm. Panel Thickness 0.8-3.0mm. Material Nylon 66. Available in Natural or Black. Reusable and releasable for easy wire bundling
THA-12
Twist Lock
Nylon 66
94V-0, 94V-2
Black, Natural

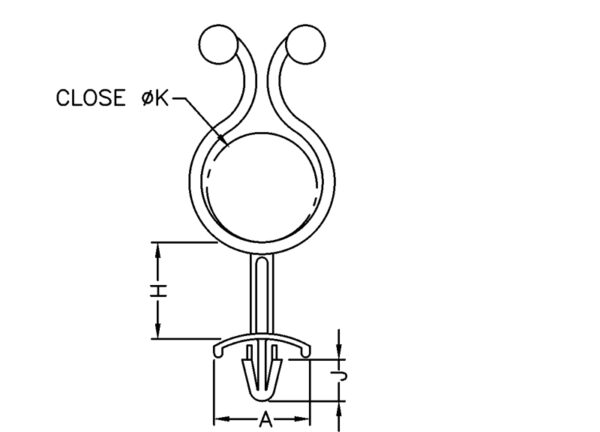

| Part no. | Material | Color | A max. C | B min. PHD | C max. PHD | D min. PT | E max. PT | Package |
|---|---|---|---|---|---|---|---|---|
| THA-1 | Nylon 66 | Black | 7.1 | 4.8 | 5 | 1 | 3.2 | 1000 |
| THA-10 | Nylon 66 | Black | 20 | 4.8 | 5 | 1 | 3.2 | 500 |
| THA-11 | Nylon 66 | Black | 24.3 | 4.8 | 5 | 1 | 3.2 | 500 |
| THA-12 | Nylon 66 | Black | 11 | 4.8 | 5 | 1 | 3.2 | 500 |
| THA-14 | Nylon 66 | Black | 20.3 | 4.8 | 5 | 1 | 3.2 | 500 |
| THA-15 | Nylon 66 | Black | 4.8 | 5 | 1 | 3.2 | 500 | |
| THA-16 | Nylon 66 | Black | 8.8 | 4.8 | 5 | 1 | 3.2 | 500 |
| THA-19 | Nylon 66 | Black | 11 | 4.8 | 5 | 0.8 | 2.5 | 500 |
| THA-2 | Nylon 66 | Black | 7.1 | 4.8 | 5 | 1 | 3.2 | 500 |
| THA-3 | Nylon 66 | Black | 7.1 | 4.8 | 5 | 1 | 3.2 | 500 |
